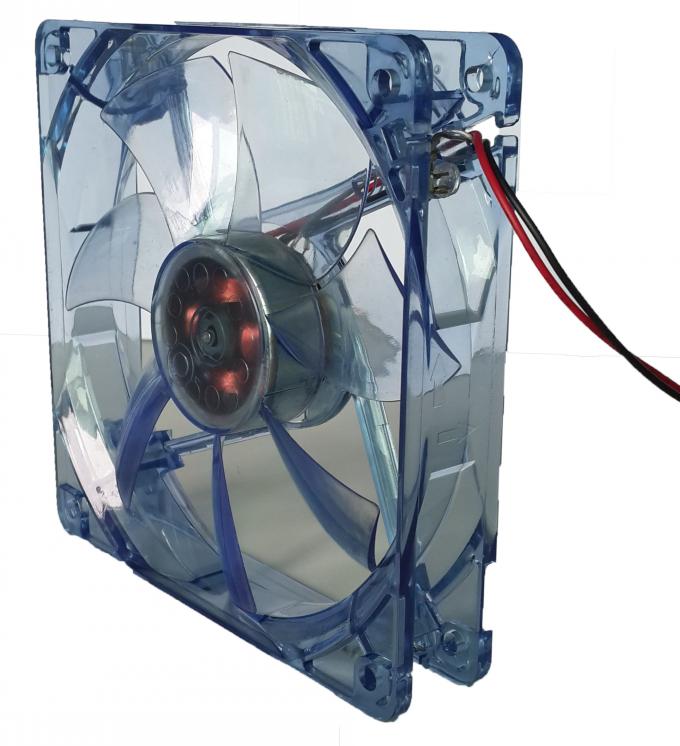

Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan

Brand Name : MX

Model Number : MX1205ABH1

Certification : CE / ROHS / UL / SGS

Place of Origin : China

MOQ : 500pcs

Price : us$1.5 / pcs to us$3.00/pcs, and negotiation

Payment Terms : T/T / PAYPAL

Supply Ability : 600,000pcs per month

Delivery Time : 5-12 working days after received your payment

Packaging Details : Carton

Speed : 3000rpm

Color : Blank

Expected Life : 50,000 / 30,000 Hours ( 40C )

Bearing Type : Ball Bearing/Sleeve Bearing

Max Air Flow : 103.92CFM

Current : 0.10-0.80A

Contact Now

Applications :

Topfan's brushless axial dc fan 120mm 4 . 7inch , low noise and long life expectancy , are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .

Detailed Product Description :

Voltage :12V , 24V , 48V
Insulation Resistance:10M AT 500VDC
Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
Opetation Temperature : -10℃～70℃ ( Ordinary humidity )
Storage Temperature : -40℃～70℃ ( Ordinary humidity )
Life Expectancy : Ambient temperature 25℃ and humidity 65% ( Ball bearing : 50 , 000Hours , Sleeve bearing : 30 , 000Hours)

Specifications :

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX12025AB(S/Y)U1	B.S.Y	12	7.0-13.8	0.80	9.60	3500	122.12	3.46	0.31	77.47	49.00	140.00
MX12025AB(S/Y)H1	B.S.Y	12	7.0-13.8	0.50	6.00	3000	103.92	2.94	0.24	60.51	44.00	140.00
MX12025AB(S/Y)M1	B.S.Y	12	7.0-13.8	0.40	4.80	2500	86.65	2.45	0.18	44.03	39.00	140.00
MX12025AB(S/Y)L1	B.S.Y	12	7.0-13.8	0.20	2.40	2000	67.01	1.90	0.10	26.09	35.00	140.00
MX12025AB(S/Y)U2	B.S.Y	24	14.0-27.6	0.50	12.00	3500	122.12	3.46	0.31	77.47	49.00	140.00
MX12025AB(S/Y)H2	B.S.Y	24	14.0-27.6	0.40	9.60	3000	103.92	2.94	0.24	60.51	44.00	140.00
MX12025AB(S/Y)M2	B.S.Y	24	14.0-27.6	0.25	6.00	2500	86.65	2.45	0.18	44.03	39.00	140.00
MX12025AB(S/Y)L2	B.S.Y	24	14.0-27.6	0.15	3.60	2000	67.01	1.90	0.10	26.09	35.00	140.00
MX12025AB(S/Y)U4	B.S.Y	48	28.0-56.0	0.40	19.20	3500	122.12	3.46	0.31	77.47	49.00	140.00
MX12025AB(S/Y)H4	B.S.Y	48	28.0-56.0	0.30	14.40	3000	103.92	2.94	0.24	60.51	44.00	140.00
MX12025AB(S/Y)M4	B.S.Y	48	28.0-56.0	0.20	9.60	2500	86.65	2.45	0.18	44.03	39.00	140.00
MX12025AB(S/Y)L4	B.S.Y	48	28.0-56.0	0.10	4.80	2000	67.01	1.90	0.10	26.09	35.00	140.00

Competitive Advantage :

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan

Tag:

pc cooling fan,

notebook cooling fan

Product Tags:

pc cooling fan

notebook cooling fan

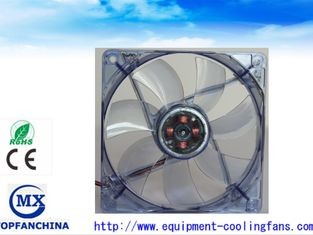

Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan Images
