DC 12V/24V 190mm Metal Impeller Tangential Cross Flow Fan Big Air Volume Low Noise Fan
1. Purpose:
It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machinery.
2. Expeceed Life:
Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours
3. ELECTRICAL CHARACTERISTICS:
ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE
& 50~80%R.H.UNLESS OTHERWISE SECIFIED.
| 1 | RATED VOLTAGE | VOLTS | V | 12 | |
| 2 | OPERATION VOLTAGE | VOLTS | V | 7.8-26.2V | |
| 3 | FREQUENCY | Hz | Hz | 50 | |
| 4 | NPUT CURRENT | AMP | A | 0.15A±10% | AT RATED VOLTAGE |
| 5 | INPUT POWER | WATTS | W | 13W ±10% | AT RATED VOLTAGE |
| 6 | ROTATION SPEED | RPM | RPM | 2700±10% | |
| 7 | ACOUSTICAL NOISE(AVG) | dB(A) | dB(A) | ≤32 | DETAILS SEE ATTACHED PAGE. |
| 8 | MAX .AIR-FLOW | CFM | Q | 28 | TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE. |
| 9 | MAX . AIR-PRESSURE | mmH2O | P | 1.0 | TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE. |
| 10 | INSULATION RESISTANCE | MEG. OHM | MΩ | >20 MΩ | BETWEEN FRAME AND TERMINAL |
| 11 | DIELECTRIC STRENGTH | | | 1800V,3S,1MA | BETWEEN FRAME AND TERMINAL. |
| 12 | ROTARY DIRECTION | | | CC W | |
| 13 | INSULATION CLASS | | | CLASS E | |
| 14 | LIFE EXPECTANC | | | 15000 Hours at 25℃/65%RH | |
4. ENVIRONMENTAL:
4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)
4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃
4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%
5. Specifications:

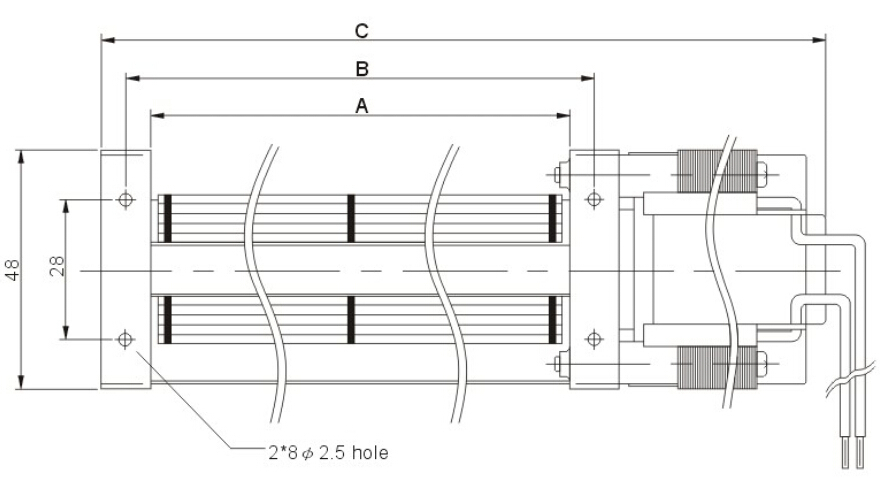

6: Dimensions (Unit:mm)
Product and Packing
