Balck Color DC Motor Fan , Ball Bearing Fan 120x120x32mm With FG IP58 Function

Product Categories
Shenzhen Topfan Technology Development Co., Ltd.
Contact Now

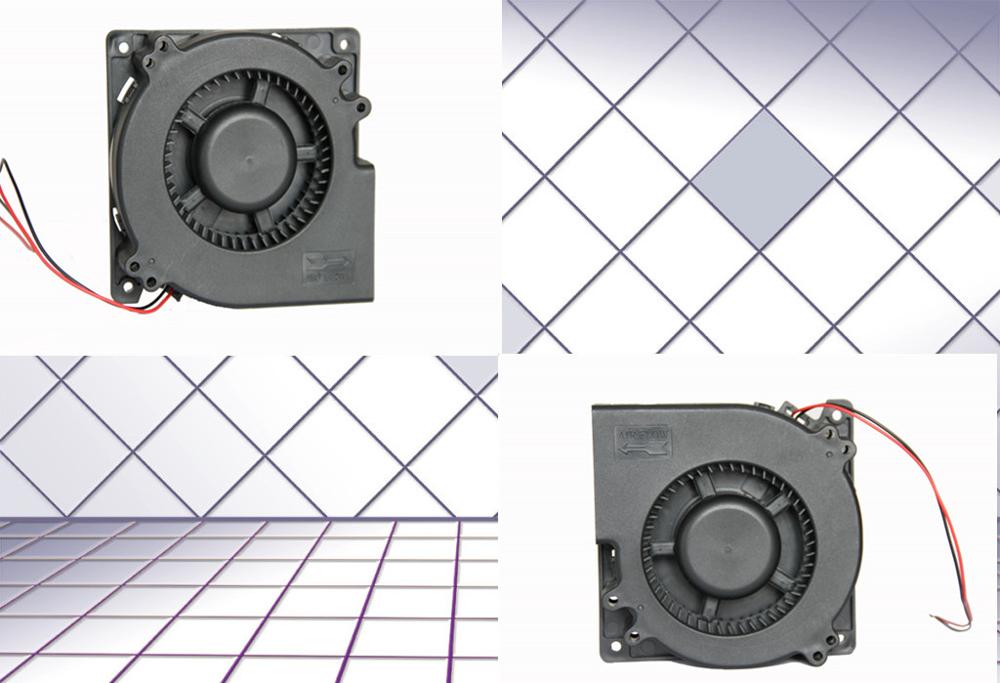

Balck Color DC Motor Fan , Ball Bearing Fan 120x120x32mm With FG IP58 Function

  • 1
  • 2

Brand Name : MX

Model Number : MX12032GBM2

Certification : CE ROHS

Place of Origin : GD

MOQ : 500PCS

Price : USD/ 4.5-5.6$/ PCS

Payment Terms : T / T , Paypal

Supply Ability : 20000/pcs/per day

Delivery Time : 12-15 working days

Packaging Details : CARTONS

Product name : cooling blower fan

Color : balck

Size : 120 × 120 × 32 mm

Voltage : 12V/24V

Speed : 3500RPM - 4500RPM

Current : 0.5-1.0A

weight : 278g

Air flow : 30CFM-41CFM

Contact Now

DC Blower Fan 120x120x32mm Ball Bearing Fan With FG IP58 Function

feature

Frame and Impeller: Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG IP58
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 5V 12V 24V 48V
Tempetature Range: –10℃ to +60℃
Motor: Impedance Protected and Reverse Polarity Protected

Balck Color DC Motor Fan , Ball Bearing Fan 120x120x32mm With FG IP58 Function

Balck Color DC Motor Fan , Ball Bearing Fan 120x120x32mm With FG IP58 Function

Specifiction

Model Bearing Type Rated Voltage Operating Voltage Current Amp Input Power Speed Max
Air Flow		 Max
Static Pressure		 Noise Level Weight
Part No. S B Y VDC VDC Amp Watt RPM CFM m3/min Inch-H2O Pa dB-A g
MX12032GB(S)H1 B.S 12 7.0-13.8 2.00 24.00 3500 41.20 1.17 1.85 461.99 57 278
MX12032GB(S)M1 B.S 12 7.0-13.8 1.00 12.00 3000 35.44 1.00 1.17 291.94 51 278
MX12032GB(S)L1 B.S 12 7.0-13.8 0.70 8.40 2500 30.79 0.87 0.83 207.90 45 278
MX12032GB(S)H2 B.S 24 14.0-27.6 1.00 24.00 3500 41.20 1.17 1.85 461.99 57 278
MX12032GB(S)M2 B.S 24 14.0-27.6 0.70 16.80 3000 35.44 1.00 1.17 291.94 51 278
MX12032GB(S)L2 B.S 24 14.0-27.6 0.40 9.60 2500 30.79 0.87 0.83 207.90 45 278

Manufacture Process

Balck Color DC Motor Fan , Ball Bearing Fan 120x120x32mm With FG IP58 Function

More fans

Balck Color DC Motor Fan , Ball Bearing Fan 120x120x32mm With FG IP58 Function

Balck Color DC Motor Fan , Ball Bearing Fan 120x120x32mm With FG IP58 Function

Extensive application

Balck Color DC Motor Fan , Ball Bearing Fan 120x120x32mm With FG IP58 Function
